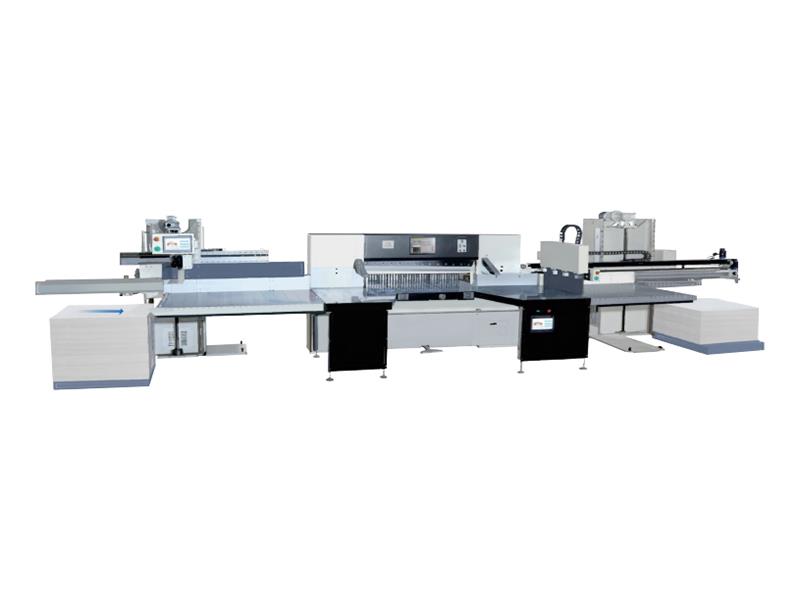

K137N15 Touch screen Computer Cutter(Optional Fork-type lifter)

Full automatic paper taking machine \paper cutting machine \paper unloading machine

Model

K92DL10

K115DL15

K130EL10

K130D

K137N

K176N

Cutting width(mm)

920

1150

1300

1300

1370

1760

Cutting length(mm)

920

1150

1300

1300

1450

1760

Cutting hright(mm)

130

165

130

165

165

165

Max clamping pressure(N)

45000

45000

45000

45000

45000

55000

Cutting speed(times)

45

45

45

45

45

45

1. The up machine  adopted the imported Touch screen of  8/15  inches,with many languages and USB interlaces. It can automatically  check the troubles. It has 5000 program groups. Each group has more than1000 cutting data in different position. motor,with lower  noise.Its max paper-pushing  speed is  at  9-18 meter per minute.Its positioning precision stood at±0.01mm.

 2. The nickel-coated work platform and side platform are firm and reliable in the whole life cycle.The materials can sturdily move. It has  many air ejectors. They can  independently supply air, which.

3. The ideal back gauge for the direct positioning system   dual  guide  rail  can  precisely  position  for  the  cutting,which  can assure the cut quality.

4. Huawei is ready to offer the customer the most secure paper cutter protectors.

5. TFT liquid crystal displayer can help you have a clear vision on the operation panel.

6. The  servo  driving  system,with  rolling  ball  thread  rod  and  dual guide rail.four slide group can help it precisely position in operation.

7. The pedestal for the tool topper can make it more safe to replace.

8. The electric system adopted the Schneider Electric system and 0mron Electric system.

9. Compared the worm rod construction with the gear construction ration,its speed is improved by 30%.It has lower noise.Its cost can be reserved in its later transfer.

10. Itscut overload safety protector can well protect the tool holder,slide and pulling .

11. Themechanic auxiliary tool exchanger can help you replace the toolsin a safer mann.

12. Its hydraulicsystem    adopted   the   famous    brand   YUKEN   components  components. The foot pedestal controller adopted the piston-type transmission paper presser,with soft pressure.
