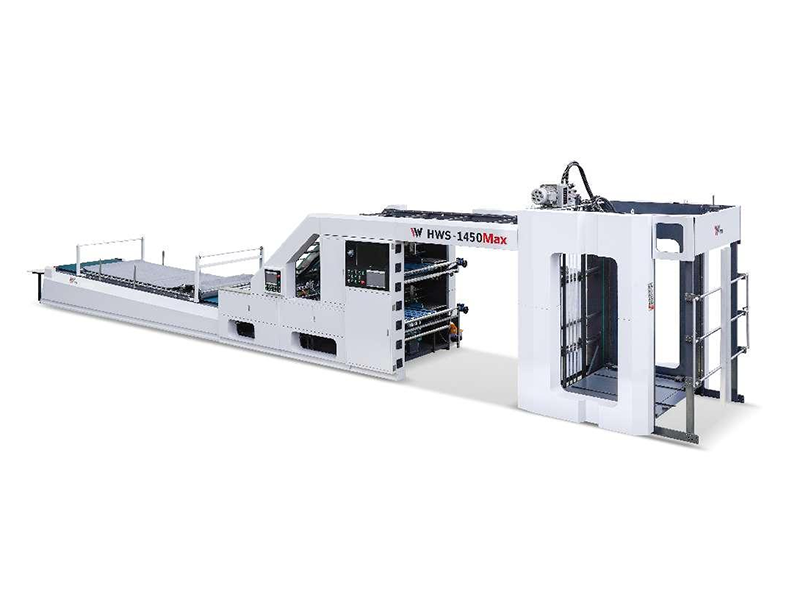

Model |
HWS-1450 |
HWS-1700 |
HWS-2100 |
|
Max sheet size |
1450*1450mm |
1450*1450mm |
1650*1450mm |
|
Min sheet size |
400*360mm |
390*360mm |
390*360mm |
|
Top sheet thickness |
150-600GSM |
120-600GSM |
120-600GSM |
|
Bottom sheet thickness |
0.5-12mm A/B/C/E/F etc Corrugated paper, Industrial board |
||
|
Max speed( 5layers) |
10000sheet/hour 120m/min |
10000sheet/hour 120m/min |
10000sheet/hour 120m/min |
|
Max speed( 3layers) |
15000sheet/hour 200m/min |
15000sheet/hour 200m/min |
15000sheet/hour 200m/min |
|
Fitting precision |
±1mm |
±1mm |
±1mm |
|
Dimensions |
16.46*2.39*2.87M |
18.5*2.6*2.787M |
20.3*2.8*2.9M |
|
Machine weight |
16.3T |
17.3T |
18.3T |
|
Machine power |
42KW/380V |
45KW/380V |
48KW/380V |
|
Bottom paper heght |
400mm |
400mm |
400mm |
|
Top paper height |
1800mm |
1800mm |
1800mm |
TOP SHEET FEEDING MECHANISM

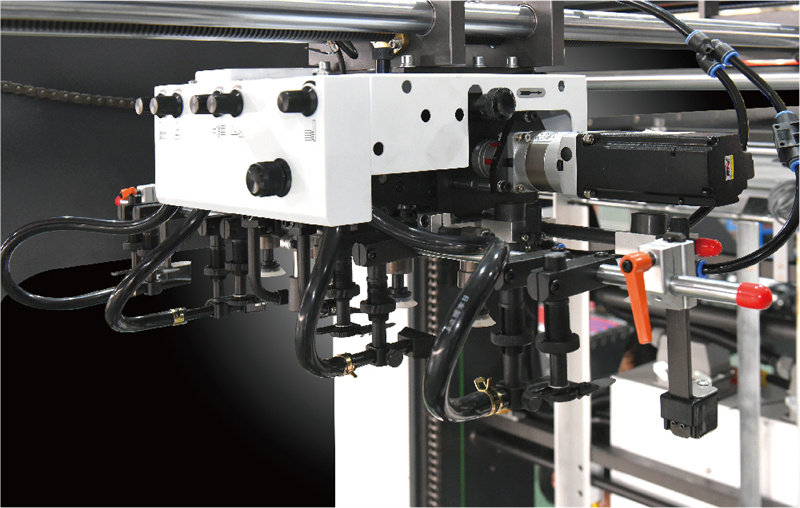

- Adopt four - suction and four - feeding structure, conjugate CAM structure, stable and reliable paper feeding
- The spool is easy to disassemble and clean
- It can correct paper deviation and adjust the height of suction nozzle under non-stop state

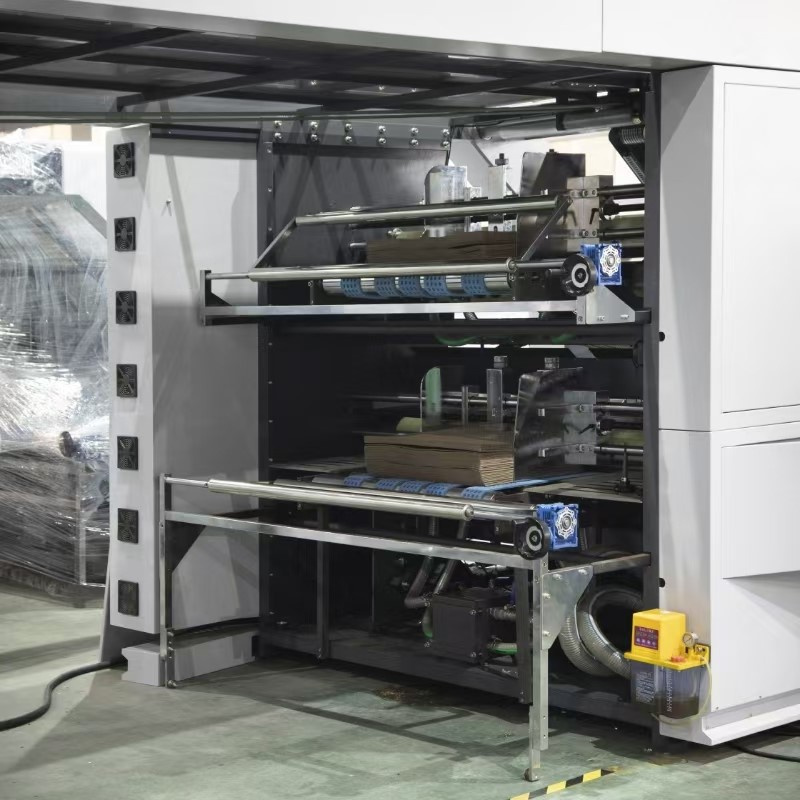

Adopting a double-layer servo motor belt paper feeding and conveying structure, it can complete single mounting, double mounting, and triple mounting functions at once, with diverse options for easy replacement

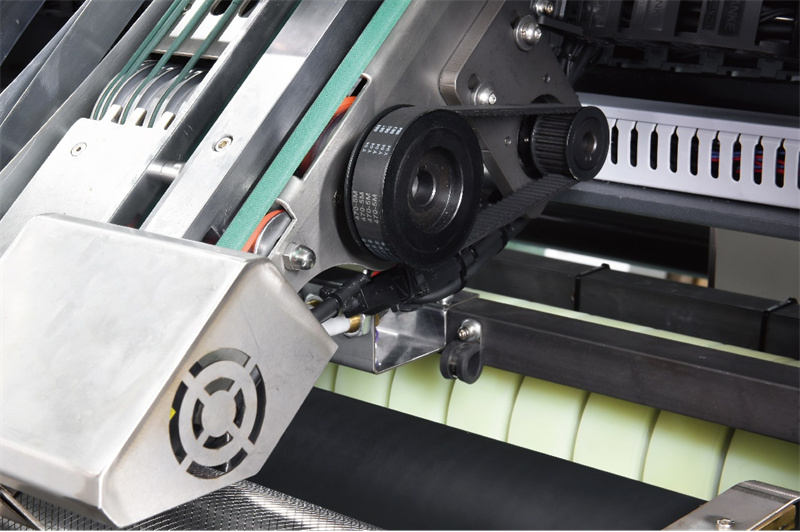

The conveyor adopts a shaftless transmission structure, which has the advantages of smooth operation, high fitting accuracy, and reduced failure rate.

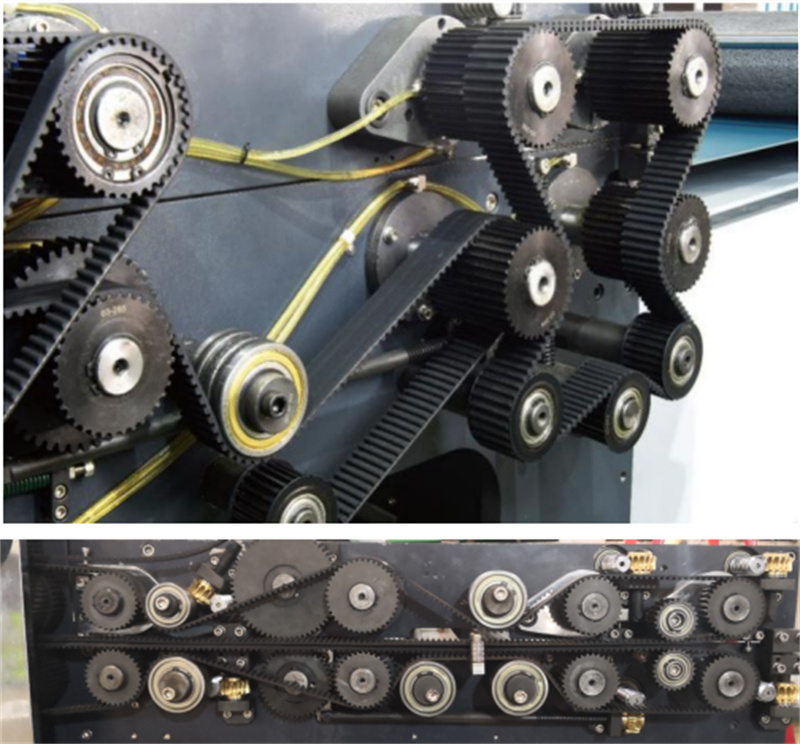

- The main machine adopts a grouped transmissionstructure with widened synchronous belt, so the load is evenly stressed.Extend the service life ofthe timing belt.
- When other parts ofthe host stop running, the coating roller can operate independently, which is designed to avoid washing the glue during the lunch break, making it more energy-efficient and safe.

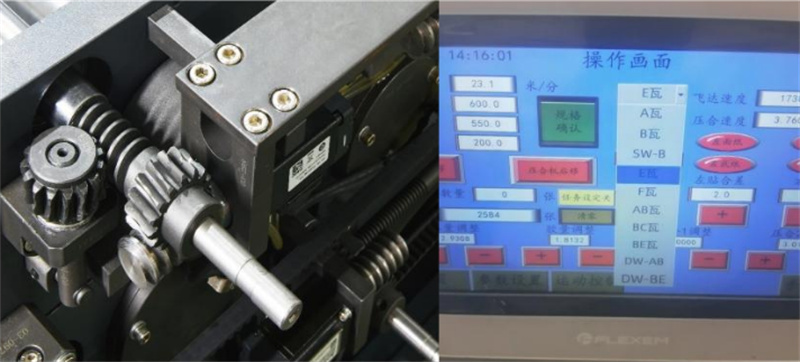

Automatic pressure regulation, automatic glue regulation,automatic water regulation, with memory storage function,can be input with one click to automatically adjust the shape.
WATER TRAY LIFT STRUCTURE

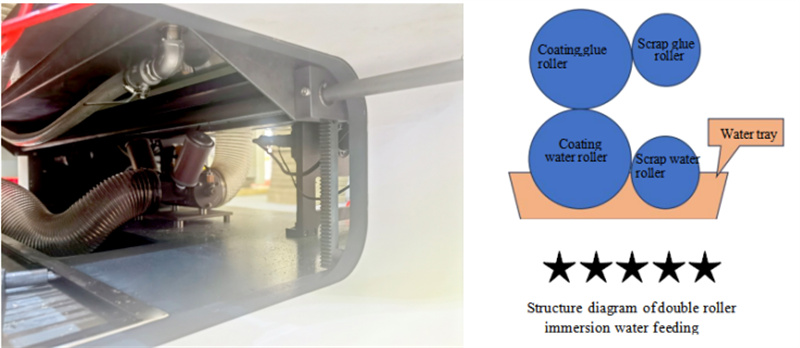

Adopting the principle structure of double roll soaking and hanging water, ensuring uniform water supply and equipped with a water tray lifting structure, it can be quickly disassembled and cleaned.
The single roll soaking water transfer type has uneven water supply, with a large amount of water at the front end and a small amount of water at the end, which is very uneven.
ELECTRICAL SYSTEM

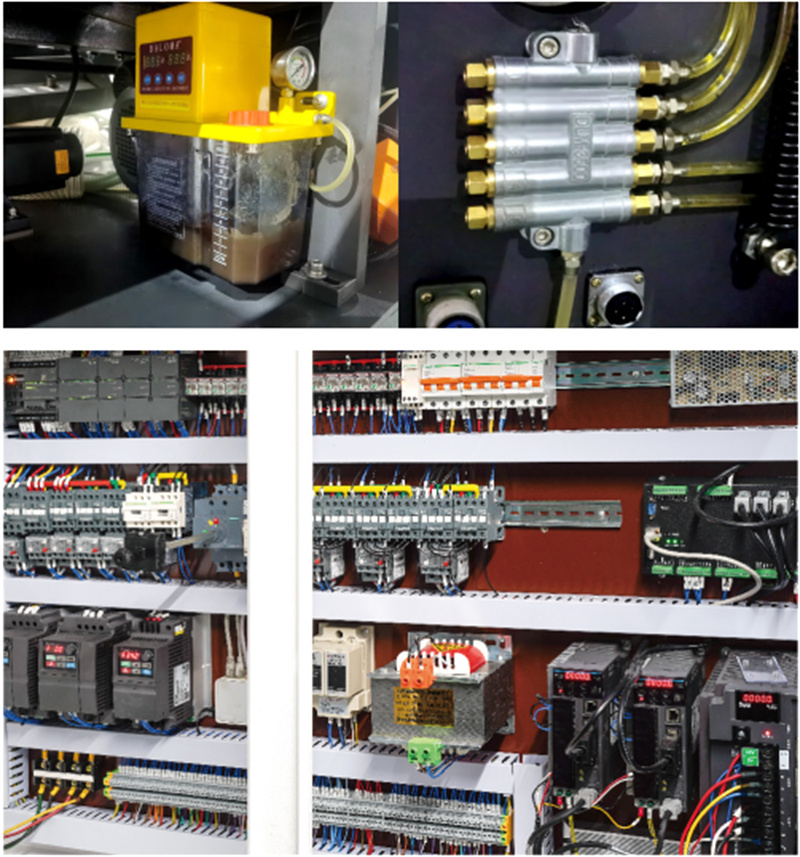

- Main electrical components are imported brands(Schneider,Siemen and so on)
- Automatic lubrication system, maintenance free design, lubricates every transmission part.
PLC tracking technology, automatic fault detection
POSITIONING AND GLUE SYSTEM

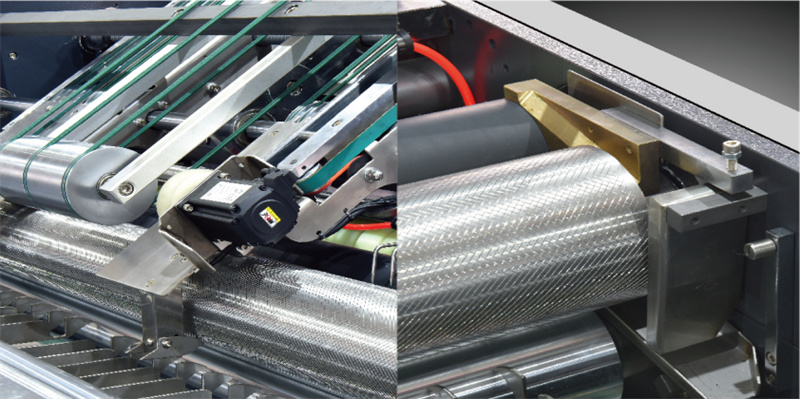

1)High precision stainless steel knurled rubber roller, never rust, after fine grinding to ensure uniform gluing
2)The specially processed copper block ensures that the rubber roller running at high speed will not throw glue and overflow glue It can adjust the backflow of glue to ensure the cleanliness of equipment and the service life of bearings.
3)The error value between front paper and base paper is controlled by multiple groups of photoelectric detection and calculation The side servo motor compensates the surface paper to a predetermined position for precise alignment
