Main features

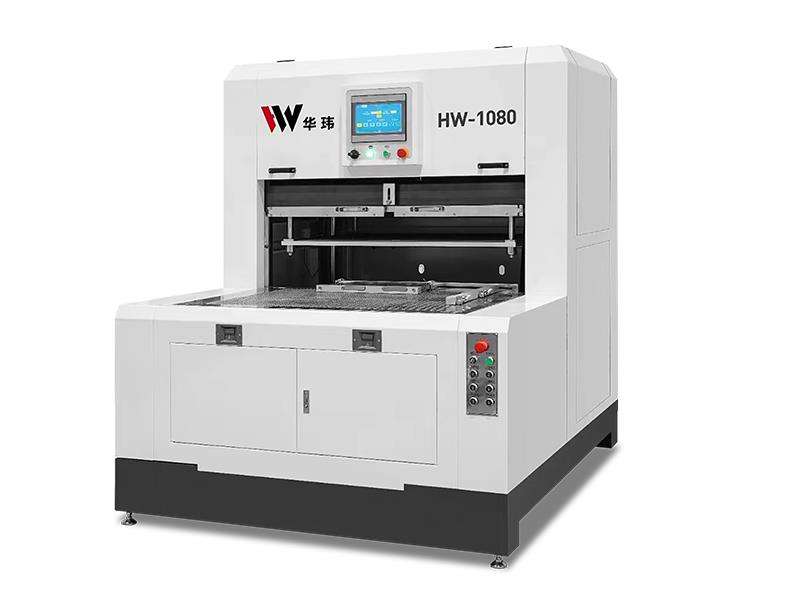

- Different for other models in our factory, HW-1080 is a professional equipment which canrealize full-page blanking work of any carton packaging products of different sizes and shapes on a single sheet in one time. The machine features upper and lower pin base, which makes jobs easy, fast for both blanking and jobs shifting, effectively improving productivity.
- Heavy-duty, quality-built single support base.
- Equipped with high-precision linear bearing rails and servo motors for smooth and precise movement.
- Operator friendly touch screen for quick and simple programing.
- Can be customized according to customers’ job demand.
- Servo motor, double guide rail and ball screw ensure accuracy.
- Hydraulic system with inserted motor and oil temperature cooling fan ensures constant and big working pressure.
- The complete machine takes much less space and is equipped with PLC, touch screen interface in operation。
- Used to replace manual labor, improving product quality and enterprise profit.
Payment terms
- 30% down payment; 70% by T/T at sight before shipment
Delivery time
- About 1 month after receipt of down payment
Installation
- Installation of the machine will be done by our engineers. Installation and training is free of charge and the whole period is 3 working days. Extended training will be charged USD200 per person per day.
- Customer is also responsible for the expenses of round-trip air tickets, hotel accommodation, meals, and local transportation for engineers. If a translator is required, it will be on customer’s account.
- Remarks:During pandemic, usually we provide distance support when comes to installation.
Warranty
- There is 1 year warranty (from the date of installation) on all parts, mechanical and electrical, due to defect in manufacturing, except for consumable parts such as belts, air nozzles, etc. and if “accident” or mal-operation has occurred.
Remarks
- All the conditions are subject to our final confirmation.
Model |
HW-1080 |
Max. paper size (X * Y) |
1080 X 780 |
Min. paper size (X * Y) |
400 x200 |
Max. blanking size mm |
1030x730 |
Min.blanking size mm |
40x40 |
Stripping height |
40-100 |
Weight |
2.1 |
Voltage |
380 |
Power |
7.5 |
Blanking speed |
1/min |
Net weight |
2100 kgs |
Machine net dimension |
2400 X 1750 X 1950 |
Machine packing dimension |
2600 X 1900 X 2100 |
