Stripping Machine With Robot Hand

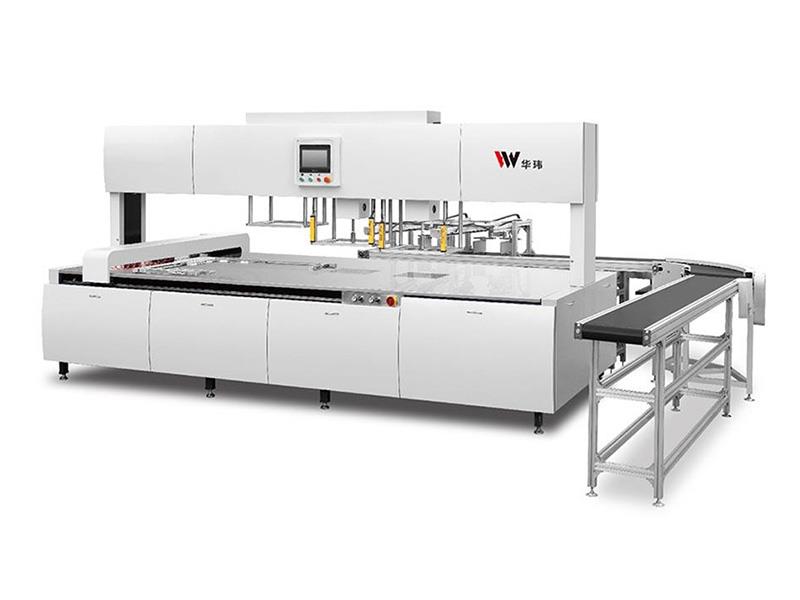

The MSCB-1080 series automatic stripping machine is designed and manufactured by the HUAWEI printing machinery company in order to solve the problem of difficult talking out finished products by workers after die cutting cardboard.

Model:

MSCB-ST-1080

Max Stripping Area(mm)

1080*780

Mini Stripping Area(mm)

450*420

Max Stripping Finished Product Size(mm)

450*600

Mini Stripping Finishes Product Size

30*30

Stripping Height(mm)

40-120

Stripping speed(time/min)

15-20

Main Power(KW)

4

Voltage(V)

380V/50HZ

Wire Specification(mm)

2.5

Machine Weight(kg)

3500

Overall Dimension (mm)

3300*1800*1900

Packing Size(mm)

3500*2000*2050





MODEL

MSJX

Max taking out finished product size

250*300mm

Min taking out finished product size

50*50mm

Max taking out finished product height

80mm

Min taking out finished product height

40mm

power

1kw

weight

250kg

Machine size

2500*1650*1350

Product Introduction

The MSCB-1080 series automatic stripping machine is designed and manufactured by the HUAWEI printing machinery company in order to solve the problem of difficult talking out finished products by workers after die cutting cardboard.



Main Purpose

It is suitable for automatic talking out the products like cloths label ,card , medicine boxes , cigarette boxes ,small toy boxes ,etc .



The advantage of the machine

Use the computerized PLC touch screen to adjust the date which is more convenient  users ,the main movement  is combined by the hydraulic system and ball screw driven by servo motor which has low failure rate and more agile.



Features

After die cutting ,use the machine to stripping automatically which is more convenient  for  workers to take out the finished products ,high production ,less cost and high efficient for customers.
