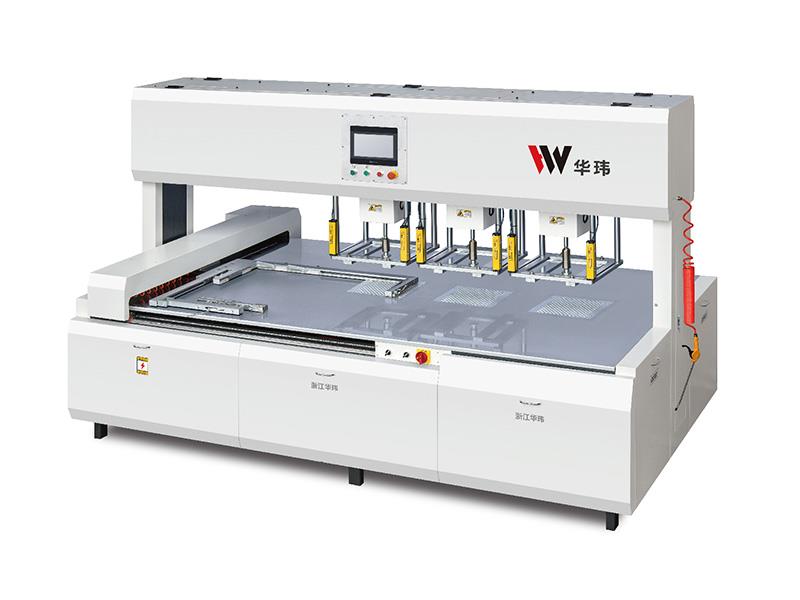

Product Introduction
The MSCB series automatic stripping machine is designed and manufactured by the Miaoshi printing
machinery company in order to solve the problem of difficult talking out finished products by workers after die cutting cardboard.
Main Purpose
It is suitable for automatic talking out the products like cloths label ,card , medicine boxes , cigarette boxes ,small toy boxes ,etc .
The advantage of the machine:
Use the computerized PLC touch screen to adjust the date which is more convenient users ,the main
movement is combined by the hydraulic system and ball screw driven by servo motor which has low failure rate and more agile.
Features
After die cutting ,use the machine to stripping automatically which is more convenient for workers to take out the finished products ,high production ,less cost and high efficient for customers.
|
Model： |
MSCB-SQ-680 |
MSCB-SQ-920 |
MSCB-SQ-1080 |
|
Max Stripping Area（mm） |
680*450 |
920*650 |
1080*780 |
|
Mini Stripping Area（mm） |
450*320 |
450*320 |
450*320 |
|
Max Stripping Finished Product Siz （mm） |
220*220 |
310*280 |
420*450 |
|
Mini Stripping Finishes Product Siz （mm） |
30*30 |
30*30 |
30*30 |
|
Stripping Height（mm） |
40- 120 |
40- 120 |
40- 120 |
|
Stripping speed（time/min） |
15-20 |
15-20 |
15-20 |
|
Voltage（V） |
380V/50HZ |
380V/50HZ |
380V/50HZ |
|
Machine Weight（kg） |
1600 |
2100 |
3200 |
|
Overall Dimension (mm) |
2300* 1200* 1900 |
2950* 1600* 1900 |
3300* 1800* 1900 |
|
Packing Size（mm） |
2400* 1500*2050 |
3200* 1900*2050 |
3500*2000*2050 |
